  1. #81
    Buys guns while sleeping
    Join Date
    Sep 2011
    Location
    Highlands ranch
    Posts
    1,178

    Default

    Quote Originally Posted by thvigil11 View Post
    What is between the switch and the light. GFI? Pics of the wiring at that GFI might help. Outdoor gfis can be problematic, especially after seeing corrosion on the rest of the system.
    Lim 99% sure the gfi is before the switch. I'll get some pics of the gfi tomorrow. It's operating properly though.

  2. #82
    CO AR-15's very own Gimli Sparky's Avatar
    Join Date
    Oct 2003
    Location
    Lakewood
    Posts
    2,267

    Default

    For shits sake lets simplify this.

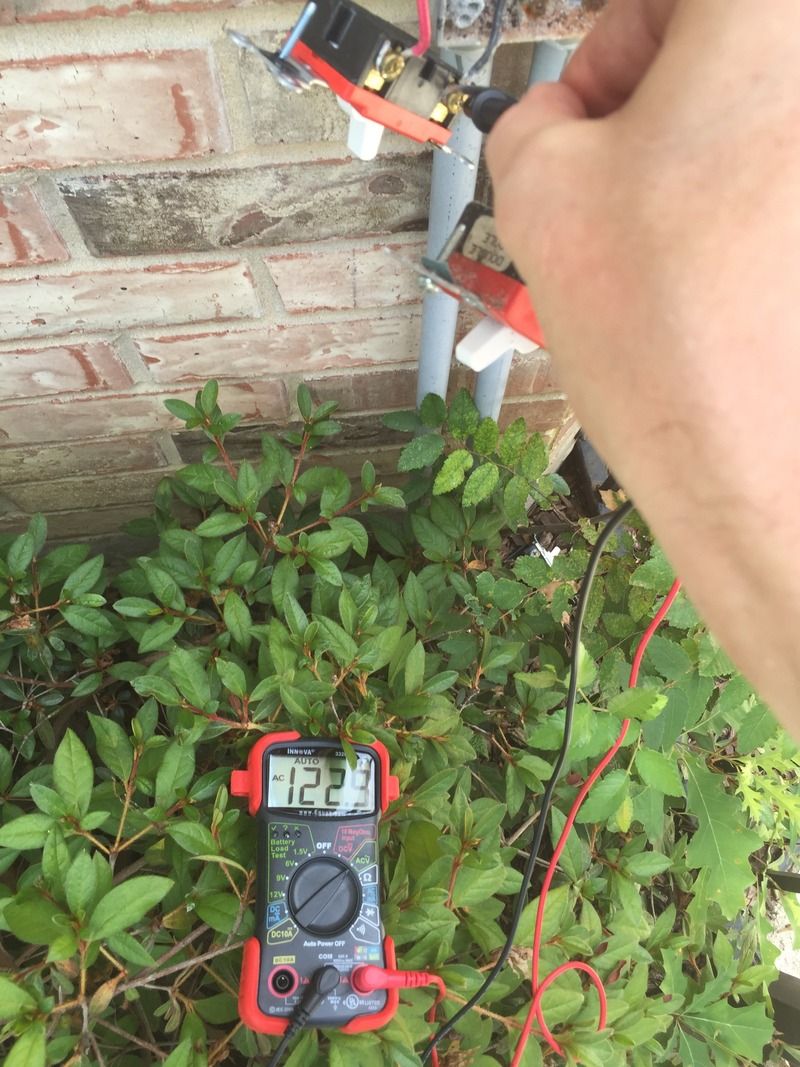

    1. Test constant hot to neutral. Constant hot is the black wire attached to both switches. One lead on the black and one on the white. Do you get 120V? If so step 2
    a. If you do not get 120v your problem is before the switch.

    2. Turn on the switch and test switch leg to neutral. Do you get 120V? Switch leg is the other wire on the switch.
    a. If you do not get 120v throw switch in the trash and get a new one.
    b. If you do get 120v the problem is either the wire underground or the light fixture.

    Most pools have a deck box somewhere that the cable from the wet niche fixture terminates in. If you turn the switch on you should get proper voltage. If the spa light works fine I suspect your problem is after the GFCI.
    Farts are funny

  3. #83
    Buys guns while sleeping
    Join Date
    Sep 2011
    Location
    Highlands ranch
    Posts
    1,178

    Default

    Quote Originally Posted by Sparky View Post
    For shits sake lets simplify this.

    1. Test constant hot to neutral. Constant hot is the black wire attached to both switches. One lead on the black and one on the white. Do you get 120V? If so step 2
    a. If you do not get 120v your problem is before the switch.

    2. Turn on the switch and test switch leg to neutral. Do you get 120V? Switch leg is the other wire on the switch.
    a. If you do not get 120v throw switch in the trash and get a new one.
    b. If you do get 120v the problem is either the wire underground or the light fixture.

    Most pools have a deck box somewhere that the cable from the wet niche fixture terminates in. If you turn the switch on you should get proper voltage. If the spa light works fine I suspect your problem is after the GFCI.
    1.



    2.


  4. #84
    Buys guns while sleeping
    Join Date
    Sep 2011
    Location
    Highlands ranch
    Posts
    1,178

    Default

    I'll look for a box in the bushes behind the light tomorrow, hopefully my problem is in there.

  5. #85
    High Power Shooter jslo's Avatar
    Join Date
    Jun 2012
    Location
    Littleton
    Posts
    827

    Default

    "WouId it be possible that there is an issue at the gfi causing this? My understanding is that the white, green, black hot wires are coming from there."

    Now I'm confused. if your two wire is bringing in the power than your 3 wire would then be your switch legs. Therefore the black spliced jumper is wrong. Unless I'm missing something, you need to verify which is your power supply.

  6. #86
    Buys guns while sleeping
    Join Date
    Sep 2011
    Location
    Highlands ranch
    Posts
    1,178

    Default

    Quote Originally Posted by jslo View Post
    "WouId it be possible that there is an issue at the gfi causing this? My understanding is that the white, green, black hot wires are coming from there."

    Now I'm confused. if your two wire is bringing in the power than your 3 wire would then be your switch legs. Therefore the black spliced jumper is wrong. Unless I'm missing something, you need to verify which is your power supply.
    Lets as just disregard that comment for the time being.

  7. #87
    CO AR-15's very own Gimli Sparky's Avatar
    Join Date
    Oct 2003
    Location
    Lakewood
    Posts
    2,267

    Default

    Quote Originally Posted by jslo View Post
    "WouId it be possible that there is an issue at the gfi causing this? My understanding is that the white, green, black hot wires are coming from there."

    Now I'm confused. if your two wire is bringing in the power than your 3 wire would then be your switch legs. Therefore the black spliced jumper is wrong. Unless I'm missing something, you need to verify which is your power supply.
    No you are missing something. Power in and 2 switch legs out.
    Farts are funny

  8. #88
    High Power Shooter jslo's Avatar
    Join Date
    Jun 2012
    Location
    Littleton
    Posts
    827

    Default

    But if the 2 wire is bringing the power in, why is the black from the 3 wire jumping across both switches?

  9. #89
    Grand Master Know It All
    Join Date
    Mar 2006
    Location
    Dickshooter, ID
    Posts
    4,828

    Default

    Quote Originally Posted by jslo View Post
    But if the 2 wire is bringing the power in, why is the black from the 3 wire jumping across both switches?
    Wired so that you have to turn the right switch on to power the left. Stop asking why. It's likely the previous owners "improvements"

  10. #90
    Buys guns while sleeping
    Join Date
    Sep 2011
    Location
    Highlands ranch
    Posts
    1,178

    Default

    Quote Originally Posted by Wulf202 View Post
    Wired so that you have to turn the right switch on to power the left. Stop asking why. It's likely the previous owners "improvements"
    We have already covered this part and that's not how it's wired. . Left switch is first in line, jumper is not on the switched power. The issue is the red wire heading out to the light on the top of the left switch which goes from 36v(off) to 85v(on).

    Does les the fact that 85+36 = 121 point to the problem by any chance ?
